PAINTBLOCK®+
The Paintblock+ paint mist collector is the logical evolution of the proven Paintblock system and was developed specifically for modern paint shops with dry separation. It combines efficient paint mist collection with integrated pre-separation. One system—one solution for numerous applications
Efficient paint mist separation through integrated pre-separation
The Paintblock+ paint separator was specifically designed to enhance the performance of dry filter systems in paint shops. The integrated pre-separation removes coarse paint particles before they reach the actual filter stage.

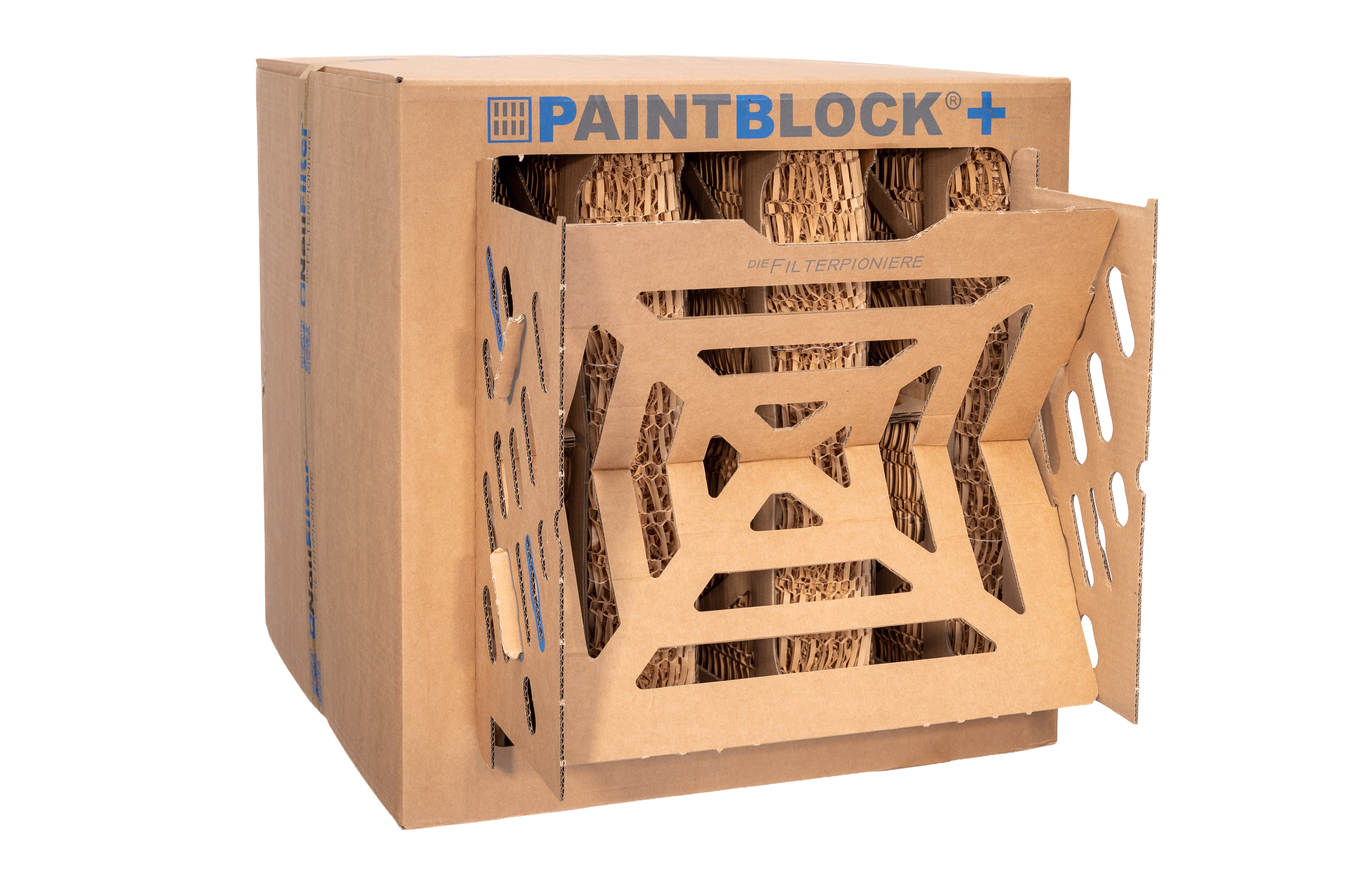

The covers for the inlet and outlet openings can be combined to form a pre-separator, enabling a compact, dual-filter solution. This removes overspray from the process air at an early stage and significantly reduces the load on the downstream filter stage. This ensures more stable airflow, more uniform filter loading, and a significantly extended service life for the entire filter unit.
At the same time, paint mist separation efficiency is increased, maintenance requirements are reduced, replacement intervals are extended, and costs are sustainably lowered.
Flow-optimized design for better filter performance
The separators used in the Paintblock+ paint mist separator have been newly developed and feature optimized geometry. This improves airflow into and through the entire filter unit. This ensures a more uniform airflow, allowing paint particles to be separated precisely and efficiently.
The optimized design not only increases separation performance but also ensures controlled, uniform filter filling. At the same time, flow resistance is reduced, which is already evident in a lower initial differential pressure (Pa).
The result is reliable and cost-effective paint separation for industrial coating processes.
Full flexibility with one system

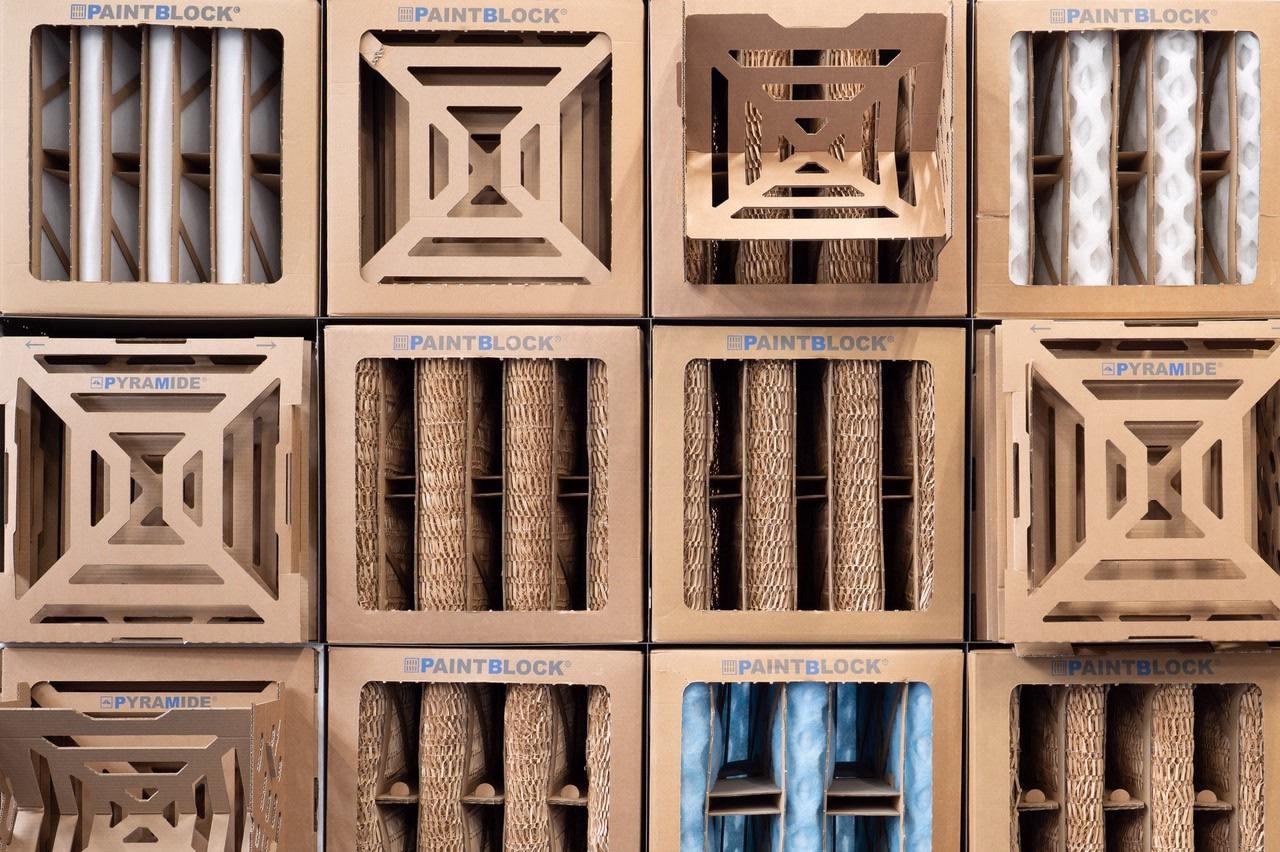

The Paintblock+ dry separator offers four flexible application options and adapts optimally to different conditions to achieve maximum efficiency.
Option 1: Use without a pre-separator
The Paintblock+ can be used without an integrated pre-separator. To do this, the covers of the inlet and outlet openings are removed and discarded. This gives you a flow-optimized Paintblock+ with new spacer technology.
Option 2: Pre-separator, angled baffle plate
The covers of the inlet and outlet openings can be assembled into an angled separation plate (similar to PaintGrid H). This variant is particularly well-suited for applications where overspray enters the filter unit from above.
Option 3: Pre-separator, front baffle plate
The outlet cover can be pre-folded at the designated point and combined with the inlet cover. This configuration is ideal when paint overspray hits the separator head-on or in so-called hotspot areas.
Option 4: Pre-separator, “Pyramid” add-on module
When opening the inlet, an additional pre-separation module (“Pyramid”) can be attached to the doors. This configuration is ideal when more than one baffle plate is required. With the Pyramid, you get an inertial separator that is equivalent in effect to two PaintGrid elements. For more information, see Pyramid.
→ One System - one solution for a wide range of applicationsQR Code Directly on the Dry Separator
Our new products feature a QR code directly on the dry separator that links to an assembly and installation video.
This simplifies proper use, reduces errors, and ensures smooth operation.
Common questions
Filter types
All types of filters presented help improve the quality of painted surfaces by minimizing the number of particles in the air. Regular maintenance and replacement of these filters are essential to ensure consistently high performance and excellent painting results. We would be happy to provide you with an offer that meets your requirements after we have provided you with comprehensive advice.
What configuration options does the Paintblock+ offer?
What configuration options does the Paintblock+ offer?
The Paintblock+ offers up to four flexible configuration options, allowing it to be optimally adapted to different plant conditions. It can be used in standard operation without a pre-separator or with various pre-separator variants for different flow directions (e.g., from above or from the front). Additionally, an extended pre-separation module (“Pyramid”) can be integrated.
These variants allow the Paintblock+ to be specifically tailored to different load conditions, ensuring optimal separation performance and efficiency.
All configuration options and their applications are clearly explained in the setup and installation video, which can be accessed directly via the QR code on the dry separator.
If you have any questions or need assistance, we are happy to help.
How is the Paintblock+ installed?
The Paintblock+ is delivered as a pre-assembled unit and can be installed directly into existing exhaust walls. The integrated pre-separator is assembled using the removable covers or windows of the inlet and outlet openings, so no additional mounting components are required.
A QR code located directly on the dry separator links to an assembly and installation video. This simplifies correct usage, reduces errors, and ensures smooth operation.
If you have any questions or need assistance, we are happy to help.
Where is the Paintblock+ used?
The Paintblock+ is used in industrial painting and coating systems with dry separation, such as paint booths, spray booths, and automated systems.
The Paintblock+ really comes into its own in systems where there is at least 20 cm of space in front of the inlet or filter wall. This clearance allows for the implementation of flexible pre-separation options (“Think outside the box”).
Tip: If you don’t have a measuring tape handy, a notepad will do: The short side of an A4 sheet or the long side of an A5 sheet is approximately 20 cm and helps you quickly check the available space.
What advantages does the Paintblock+ offer compared to conventional filter systems?
The biggest advantage of the Paintblock+ lies in the combination of an impingement separator (inertial separator) and proven Paintblock technology in a single filter unit. All the well-known strengths of the Paintblock system are retained: high separation efficiency, low initial differential pressure, simple and robust operation, and high paint capture capacity. These are further enhanced by an integrated, versatile pre-separator.
Pre-separation removes paint particles from the process air at an early stage. This increases separation efficiency and significantly reduces the load on the downstream filter stage.
The result: longer service life, lower maintenance requirements, more stable airflow, and reduced energy consumption. Combined with its flexible application options, this creates a particularly economical and high-performance solution for paint mist separation.
What sets the Paintblock+ apart, and what advantages does it offer?
The Paintblock+ combines a high-performance cardboard filter system with integrated pre-separation. This removes paint particles from the process air at an early stage, before they reach the main filter stage. This improves airflow, increases separation efficiency, and significantly reduces the load on downstream filters.
For you, this means: longer service life, more consistent filling behavior, and overall more stable system operation. At the same time, maintenance requirements are reduced, and energy consumption is lowered due to lower flow resistance.
Thanks to its flexible design with up to four configuration options, the Paintblock+ can be optimally adapted to different system conditions and load situations, ensuring particularly efficient and economical paint mist separation.
