PYRAMIDE® and PYRAMIDE®+
The Pyramid is a high-performance pre-separator for the PaintBlock and PaintBlock+ dry separators. Its special design specifically redirects the airflow to remove paint particles from the process air at an early stage. This significantly reduces the load on downstream filters and extends their service life. The Pyramid can be flexibly integrated into existing systems, particularly when paint loads are high.
Efficient Pre-separation with the Pyramid
The proven geometry from the PaintGrid has been integrated into the Pyramid, ensuring controlled airflow within the filter unit. The airflow is specifically redirected so that paint particles are separated from the process air early on and efficiently. This effective pre-separation significantly reduces the load on the downstream filters. This results in longer service life and consistently stable extraction performance.
PYRAMIDE+
The Pyramide+ can be used as a 200 mm deep single module and replaced independently of the Paintblock. In many applications, the downstream Paintblock remains in service two to three times as long as the Pyramide+ pre-separation unit.
PYRAMIDE

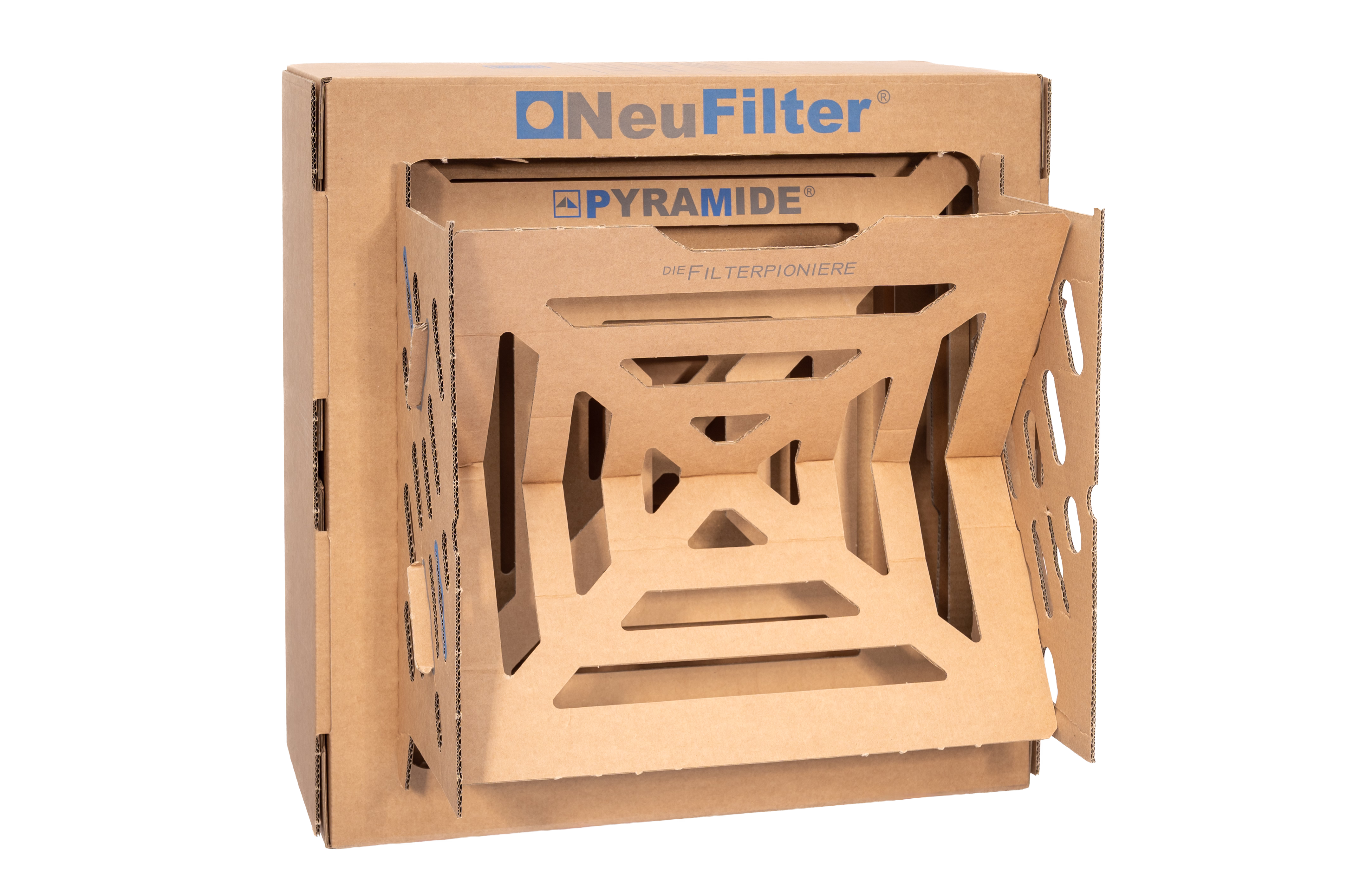

Alternatively, the Pyramide can be mounted as a pre-separation module directly on the doors or covers of the Paintblock+ in front of the inlet opening. This variant is particularly useful when the pre- and post-filters are to be replaced together or the installation situation does not allow for the use of a single module.
Expanded filter structure for better paint separation with the Pyramide+
Compared to the classic PaintGrid pre-separator, the Pyramide+ features an additional baffle plate, similar to the one used in the Paintblock+. This expands the filter structure and improves separation performance, so that paint particles are removed even more effectively from the process air. At the same time, the capacity for overspray is increased. Thanks to NeuFilter’s flexible “Think outside the Box” approach, the pre-separation plate, as already seen in the Paintblock+, can also be used in two different orientations in the Pyramide+. This allows the system to be optimally adapted to different flow directions and system conditions. Consequently, the 200 mm deep Pyramide+ single module offers a total of four configuration options:
Option 1: Use without a baffle plate
The Pyramide+ can be used without an integrated baffle plate. To do this, the covers of the inlet and outlet openings are removed and discarded. This creates a compact single pre-separator with the separation efficiency of two PaintGrid elements in a 200 mm deep module.
Option 2: Pre-separator with slanted baffle plate
The covers of the inlet and outlet openings can be assembled to form a slanted separation plate (similar to PaintGrid H). This variant is particularly suitable for applications where the overspray enters the filter unit from above.
Option 3: Pre-separator with front baffle plate
The outlet cover can be pre-folded at the designated point and combined with the inlet cover. This configuration is ideal when paint overspray hits the separator head-on or is used in so-called hotspot areas.
Option 4: Pre-separator with “Pyramid” add-on module (optional)
When the inlet opening is open, an additional pyramid can be attached to the doors as a pre-separation module. This variant is suitable for applications with particularly high loads where additional impact separation is required. In this combination, the separation efficiency roughly corresponds to a multi-stage PaintGrid arrangement (L/M/L/M).
Thus, the Pyramid+ offers maximum flexibility while delivering high and adjustable separation performance.
QR code directly on the pyramid module.
Our new products feature a QR code directly on the dry separator that links to an assembly and installation video. This simplifies correct application, reduces errors, and ensures smooth operation.
Common questions
Filter types
All types of filters presented help improve the quality of painted surfaces by minimizing the number of particles in the air. Regular maintenance and replacement of these filters are essential to ensure consistently high performance and excellent painting results. We would be happy to provide you with an offer that meets your requirements after we have provided you with comprehensive advice.
How is the Pyramide or Pyramide+ assembled?
The Pyramide and Pyramide+ can be delivered either as a pre-assembled unit for direct installation into existing exhaust walls or, similar to the PaintGrid, ordered flat on a pallet for self-assembly. This helps reduce shipping and storage costs.
A QR code is provided directly on the pre-separation module for the Pyramide and Pyramide+, which links to an assembly and installation video. This allows for easy on-site assembly and minimizes errors.
For the Pyramide+, the integrated pre-separator is assembled using the removable covers or windows of the inlet and outlet openings, so no additional assembly components are required. An assembly and installation video is also available via the QR code for this.
If you have any questions or need assistance, please do not hesitate to contact us.
With which systems is the Pyramid or Pyramid+ compatible?
The Pyramide and Pyramide+ are pre-separators (inertial separators) specifically designed as pre-filters for the Paintblock and Paintblock+ dry separation boxes.
The Pyramide is specifically designed to be mounted as a pre-separation module in the doors or lids of the Paintblock+.
The Pyramide+, on the other hand, is a standalone pre-separation module with a depth of 200 mm. It offers up to four customization options and can be flexibly integrated into existing filter walls and extraction systems.
What advantages does the Pyramid or Pyramid+ offer over conventional pre-separators?
The Pyramide+ combines the proven geometry of the PaintGrid with an additional baffle plate. This allows paint particles to be captured even more efficiently, increases the system’s capacity to handle overspray, and significantly reduces the load on downstream filters. It also enables flexible adaptation to different system configurations and airflow conditions.
The Pyramide specifically expands the Paintblock+ with additional baffle stages. This further increases separation efficiency, boosts the overall system’s capacity, and significantly reduces the load on the downstream filter.
The result: longer service life, reduced maintenance requirements, more stable airflow, and lower overall operating costs. Combined with its flexible application options, this creates a particularly economical and high-performance solution for paint mist separation.
What is the Pyramide or Pyramide+, and what is it used for?
Both modules are pre-separators for dry filter systems in paint shops. By strategically redirecting the airflow, paint particles are separated from the process air at an early stage.
The Pyramide+ enhances this principle with an additional baffle plate and an optimized filter structure, further increasing separation efficiency.
The Pyramide was specifically developed as a plug-in module for the Paintblock+ and allows the system to be expanded with additional baffle stages as needed.
